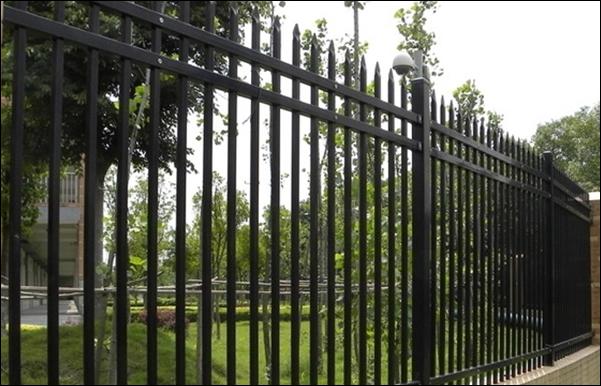

High Security Palisade Fencing - [ Buy Product ]

Place of Origin : shandong,China
Post Date : 30-07-2024
Expiry Date : 31-12-2029

Trade Description

Typical High Security Palisade Fencing System Has The Following:

Steel Palisade Panels;
Steel Palisade Gates;
Top Rail Security Spikes; And / Or
Razor Flat Wrap; And / Or
Razor Coil.
All Material Shall Be Hot Dip Galvanised To SABS/ISO 1461.

Triple Pointed And Splayed Palisade Fence With Razor Wire For High Security Applications

Steel Palisade Panels
The Palisade Panels Are Constructed With Triple Pointed Or Spear Top Posts, Top Rails, Razor Spikes, Bottom Rails And Accessories.
Modular W Section Steel Palisade Panels Of Pales, Posts, Rails

Modular Palisade Fence Panel With Frame Post, Bottom Rail And Top Rail Bolt Fixing

Spear Top Fence Panels Of Pales, Posts And Rails

Modular Palisade Panel Fixed With Horizontal Rails Bolted At Medium Position Of The Panel Height

Tubular Fencing Posts
Corner Posts Must Be Installed At A 45 Deg Angle. Two 40 X 40mm Taps With A 14mm Hole Must Be Welded, At 45 Deg, 860mm From The Bottom And 2700mm From The Bottom On The Inside Flange Of The Corner Post.
Four M 12 X 40 Mm Bolts With Hex Nuts And Washers Must Be Used To Secure The Panels To The Post. A 40 X 40 Mm Tap With A 14mm Hole Must Be Welded 525mm From The Bottom, On The Inside Flange Of The Corner Post, For The Earth Tail Connection. There Will Be Occasions When The Posts Will Be Surface Mounted And In These Instances The Post Shall Be Only 2400mm Long Having A 200mm X 200mm X 6mm Base Plate Fully Welded To The Post. The Base Plate Shall Have Four 14mm Diameter Holes Positioned At 140mm Centres At Each Corner Of The Base Plate. The Post Shall Be Secured By Means Of Four 12mm Stainless Steel Chemical Anchors.

Palisade Panels.(Refer To Figure 6)
Three Normal Panel Sizes Options: 825 X 2350 Mm, 1200 X 2350 Mm And 2100 X 2350 Panels.
Fittings For Fixing The Panels:
Hot Dip Galvanised Cap Square Bolts, Hex Nuts And Washers, Stainless Cap Square Bolts And Hex Nuts And Washers.

Top Rails. (Refer To Figure 6)
Material: 50mm X 50mm X 5mm Angle Iron.
At The End Of The Rail A 13mm Hole Must Be Drilled Through The Centre For M12 Mounting Bolts.
Razor Spikes Must Be Fitted To Top Rails By Means Of 6 Mm Pre-drilled Holes (before Galvanising) And Secured With 4.8 Mm Full Stainless Steel Pop Rivets.

Top Rail Security Spikes. Industrial Standard High Security Spikes Shall Be Used.
