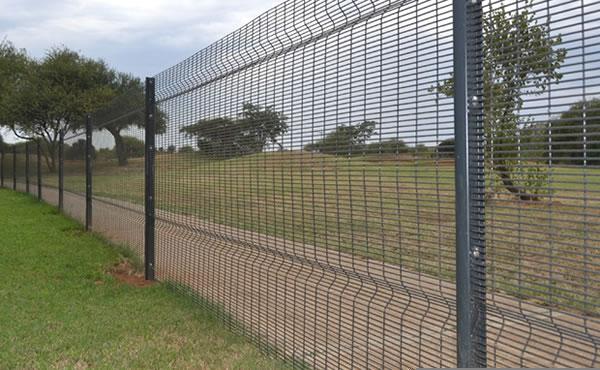

Zinc-Aluminum (Galfan Or Bezinal) 358 High Security Mesh With Channel Posts, Rails And Concertina Razor Barbed Tape
We Supply The Following Standard 358 High Security Mesh Made Of Zinc-Aluminum (Galfan Or Bezinal) Wire. Fitted With Channel Posts, Rails And Short Barb Concertina Wire.

358 Secure Mesh (75x16mm Aperture)
Specification
Wire: Ø 4mm Zinc-Alu Drawn Wire (Galfan Or Bezinal); Wire Diameter Tolerance: +/- 0.08mm

Transversal (horizontal) Wires: 13mm Centres
Longitudinal (vertical Wires): 75mm Centres
Aperture: 75mm X 16mm
Wire Resistance Welded At Each Intersection.
Tensile Strength: 500-625 MPA.
Zinc Coating Mass: 265 Gm2

Panels Size:
2100mm Height X 2404mm Length Sheet
2384mm Height X 2404mm Length Sheet
2700mm Height X 2404mm Length Sheet

Uneven Channel Posts:
Size 50x115x30x4mm, 5.6kg/M (3000mm Long), 350MPa, Channel Post With Section Depth 115mm; Flange Width 51 & 30mm; Material Thickness 4mm;
Size 50x115x30x4mm, 5.6kg/M (3300mm Long), 350MPa, Channel Post Section Depth 115mm; Flange Width 51 & 30mm; Material Thickness 4mm;
Size 50x115x30x4mm, 5.6kg/M (3600mm Long), 350MPa, Channel Post Section Depth 115mm; Flange Width 51 & 30mm; Material Thickness 4mm;
Size 50x115x30x4mm, 5.6kg/M (3900mm Long), 350MPa, Channel Post With Section Depth 115mm; Flange Width 51 & 30mm; Material Thickness 4mm.

I-beam Fence Posts:
100UC X ~14.8kg/M (3000mm Long): Section Depth 97mm; Flange Width 99mm; Thickness 7mm
100UC X ~14.8kg/M (3300mm Long): Section Depth 97mm; Flange Width 99mm; Thickness 7mm
100UC X ~14.8kg/M (3600mm Long) : Section Depth 97mm; Flange Width 99mm; Thickness 7mm
100UC X ~14.8kg/M (3900mm Long) :Section Depth 97mm; Flange Width 99mm; Thickness 7mm

Rails:
50x50x4mm (2411mm Long) 250MPa With 8 X 9mm Slots

Other Fittings:
M12 X 30 Cup Head Bolt 8.8 Grade
M12 Shear Nut Class 8
M12 Washer
M8 X 40 Cup Head Bolt 8.8 Grade
M8 X 30 Cup Head Bolt 8.8 Grade
M8 Shear Nut Class 8
M8 Washer
550mm Concertina Razor Tape
