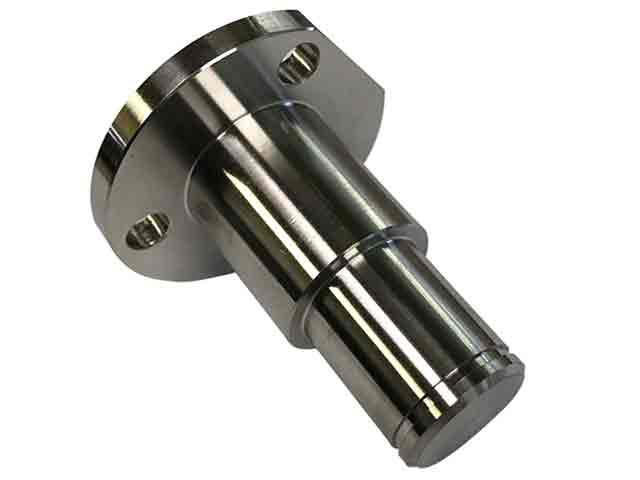

This Is The Custom 4 Axis CNC Machining Parts Recently Produced By Us.

It Meets The Requirements Of ISO9001: 2008.
Specification: 43mm*49mm
Raw Material: AL6061-T6
Surface Treatment: Clear Anodizing
Finish: Anodizing

Specifications Of Custom 4 Axis Milling Machine

Type Diaphragm Coupling Model Diameter(D) Diameter Of The Inner Hole (Accept Customization) Length(L)

Type: Broaching, Drilling, Etching / Chemical Machining, Laser Machining, Milling, Other Machining Services, Rapid Prototyping, Turning, Wire EDM Material Capabilities: Aluminum, Brass, Bronze, Copper, Hardened Metals, Precious Metals, Stainless Steel, Steel Alloys, Plastic
Micro Machining Or Not: Micro Machining Model Number: OEM
Size: 43mm*49mm Material: AL6061-T6
Main Process: Aluminum CNC Milling Surface Treatment: Clear Anodizing
Tolerance: +/-0.005mm Supply Ability 1,000,000 Pieces Per Mon

Different Diaphragm Coupling Of Custom 4 Axis CNC Machining Parts

Type Diaphragm Coupling Model Diameter(D) Diameter Of Inner Hole (Accept Customization) Length(L)
Double Diaphragm Coupling SH-CPDW 19 4 5 6 7 8 27
25 6 6.35 8 10 11 12 31
32 8 10 11 12 14 15 40
40 8 10 11 12 14 15 16 17 18 19 20 44
50 14 15 16 17 18 19 20 22 24 25 57
SH-CPDD 32 6 8 10 40
40 8 10 11 12 14 46
50 12 14 15 16 18 19 20 52
63 15 16 18 19 20 25 58
Single Diaphragm Coupling SH-CPDW 19 4 5 6 7 8 20
25 6 6.35 8 10 11 12 24
32 8 10 11 12 14 15 29
40 8 10 11 12 14 15 16 17 18 19 20 33
50 14 15 16 17 18 19 20 22 24 25 42
SH-CPDS 32 8 10 11 12 14 15 32
40 8 10 11 12 14 15 16 17 18 19 20 38
50 12 14 15 16 18 19 20 44
63 14 15 16 17 18 19 20 22 24 25 50

ShenZhen City YuanYiDa Precise Manufacture Co., Ltd. Is A Professional Cnc Spare Parts Suppliers, We Provide 4 Axis Machining, Custom Cnc Parts, Etc.
