Place of Origin : Xiamen,China
Post Date : 31-03-2013
Expiry Date : 22-03-2017

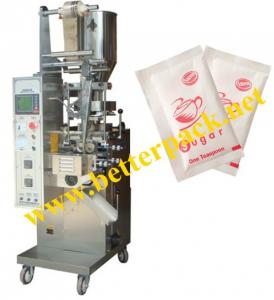

Scope Of Application
This Packing System Is Suitable For The Automatic Weighing And Package Of Granule Material Such As Seeds, Beans, Nuts, Salt, Sugar, Rice,also Can Be Used For Snack Food Pouch Packaging Like Chips,namkeen,kerture,etc.
Technical Specification
Screen: 10.4 Inch Touch Screen
Weighing Hopper Size: 1L
Head Weigher Number: 10 Head
Hopper Material: 304 Stainless Steel (316 Need To Be Ordered.)
Bag Size: W:60-200mm,L:80-280mm
Weighing Range: 10-3000g
Weighing Accuracy: 0.3-1.5g
Max Width Of Roll Film: 600mm
Packaging Film Material: Complex Film
Film Drive Power: Servo Motor
End Seal Power Cylinder/ Servo Motor
Max. Packing Speed: 60bag/min
Power 4KW
Air Consuption:0.3CBM/Min,0.6Mpa
Voltage Frequency:220/380V,50/60Hz
Machine Weight:600KG
Machine Dimension:1556x1366x2078mm
