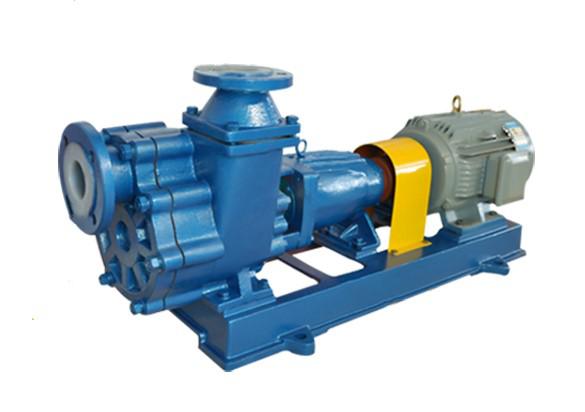

CQB-FT Series Magnetic Driven Pump Is A Horizontal, Seal Less Centrifugal Magnetic Drive Pump, Compliant With ISO/ASME/ANSI Sealless Pump Standard For General Emission-free Services.
Flow: 3.6 To 200 M3/hr
Head: 20 To 80 M
Temperature: -20 °C To +100 °C
Model No:CQB40-25-200FT
Q: 6.3 M3/h
H: 50 M
N:7.5 HP
Leak-proof Design.
-Seal-less Teflon Lined Magnetic Drive Pump, Driven By Magnetic Coupling Indirectly, Motor Shaft And Pump Chamber Is Completely Sealed, Avoid Pump Leakage Problem And Use Site Pollution.
-Wetted Part Material Is FEP, Can Transfer Low And High Concentration Acid, Alkali, Strong Oxidizer Etc Corrosive Liquid.
-Robust Pump Casing. , Pump Casing Material Is Cast Iron, And Pump Casing Can Bear Part Of Piping And Mechanical Impact.
According To DIN/ISO5199/Europump 1979 Standard. Comparing To Plastic Pumps, No Expansion Joints Are Required.Flange With Service-minded Through Holes To DIN;ANSI,BS;JIS. For Flushing System And Monitoring Device As Required, The Draining Nozzle Will Be Offered.
Isolation Sleeve Made Of FEP (F46)
Reinforcing Sleeve Made Of PEEK
-The Metal-free System Does Not Induce Any Eddy Currents And Thus Avoids Unnecessary Heat Generation. Efficiency And Operational Reliability Benefit From This .Even Low Flow Rates Or Media Near Their Boiling Point Can Therefore Be Conveyed Without The Introduction Of Heat.
Application
Corrosive, Pure And Contaminated Media In The Chemical,
Pharmaceutic And Petrochemical Industries,
In Metal Processing,
Waste Water Treatment Etc.
When Stainless Steel Is Not Sufficiently Resistant
Alternatively To Expensive Haste Alloy, Titanium Alloy Pumps
When Anti-adhesive Surfaces Are Important.
Pumping Liquid
Acid And Caustic Liquid
Oxidizer Corrosive Liquids
Difficult-to-seal Liquids
Sulfuric Acid
Nitric Acid
Acid And Lye
Nitromuriatic Acid
