Hi Rib Formwork Lath - Product

Place of Origin : Anping,China

Product Description

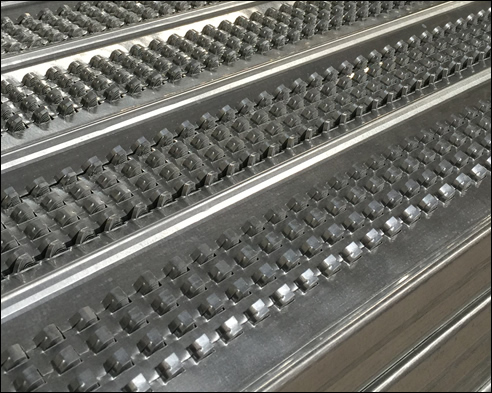

High Ribbed Lath is a metal lath with expanded hi mesh and U patterns, offering better anti-stress capability and forming flexibility than common rib lath. This product is popularly used in joint construction and various concrete formwork. Hi Rib Lath is also called High Rib Formwork Lath or simply High Rib Formwork. High Ribbed Formwork Lath forms an enhanced mechanical key for the second phase concrete pouring.

Physical Specification

Other Specification :

High Rib Lath Panels, Hot Galvanized, HR 2.44x0.61

Dismantle Free High Rib Mesh Hot Galvanized Expanded For Concrete Forming

Hy Rib Lath Expanded Metal
Surface Treatment: Hot Galvanized
Color: Silver
Feature: Corrosion Resistance
Length: 2.44 M X Width: 0.61 M
Sizes Can Be Customized
For Bridge Construction.

Galvanised High Ribbed Mesh Lathing, HR 12x8

Form Work Lathe Wire 0.30mm, 12x8, 5mm Rib Height
Hi Ribbed Mesh Type, 0.30mm Thickness, 12x8, Rib Height 5mm, Rib Distance 100mm, Lath Width 610mm

Hy Formworks Lath, HR 7/8 Inch

3.4 Hy Formwork Lathing Template For Concrete Construction,exported To USA

Hy Rib Type: 3.4 Hy Rib Lath (7/8") Used In Concrete Forming
Popular In USA Market
Available In Gal. Steel And Stainless

Hy–Rib Expanded Formwork ( Galvanised ), HR450 X 22 X 28

Hy Rib Formwork:
Specification: 450mm Width, 2200mm Length, 0.28mm Thickness
Material: Galvanized Mild Steel
Mesh Type: Hy Rib Expanded
Weight: 2.3kg/pc
Singapore

Hi Rib Lath, For Tunnel Forming, HR450 X 2200 X 23

Hi Rib Mesh, Hot Dip Galvanized
Material: Q195/SGCC
Finish: Hot Dipped Zinc Coating Galv.
450mm X 2200mm X 0.23mm
Min. Tensile Strength:270N/mm2
For Indonesia Tunnel Forming Template

PACKING

Hy Rib Lath Packing For Export

All Our Hi Rib Lath Products Are Properly Packed For Sea Transportation.
Common Packing:
10pcs/bundle With 2 Metal Strapping, 5
bundles With 3 Metal Strapping, 90 Bundles/pallet
Other Packing And Special Packing Upon Request.
