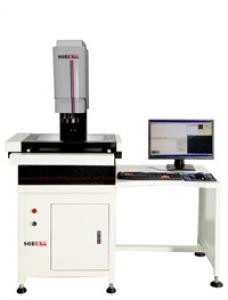

A400 CNC video measuring machine - Product

^{MINIMUM QUANTITY¹}

^{WARRANTY^{1 YEAR}}

Place of Origin : Dongguan,China

Product Description

Dongguan Sobek precision instruments co., LTD. Is a company with 15 years experience, pioneering and innovative spirit of instrument industry elite team of high-tech joint-stock enterprises, independent research and development, production, sales and all kinds of high precision optical measuring instruments used in industry. Set up an R&D center in Taiwan, the mainland has six big marketing service center and an overseas business.please contact with us: sales at sunpoc . Com , or www sobek

Basic Information

Brand : Sobek
Model : A400 CNC

Physical Specification

Other Specification : Accuracy Of X-Y Axis (μm): 3+L/200 Accuracy Of Z Axis (μm): 5+L/200 Repeatability（mm）: 0.002 Moving Speed (mm/s): X-Y: 0~400 Z: 0~100 Linear Encoder: Exposed Glass Linear Encoder With Resolution Of 1.0μm Camera Type: SBK-HC536 700 Lines Industrial Color Camera Frame Grabber: "DAHENG” Dual Channel " Color Frame Grabber With High Definition Guideway: �HIWIN” SP Level Precision Linear Guideway Ball Screw: �TBI” Ground Ball Screw Optics: 6.5:1 Continual Zoom Navigational Body Tube Magnification: Optics Zoom Ratio: 0.7-4.5X; Image Zoom Ratio: 24-158X Software: SBK-CNC Full-automatic Measuring Software Profile Illumination: LED Cold Lighting With 256 Level Programmable Brightness Adjustment Surface Illumination: 4 Rings 8 Segments LED Cold Lighting With Segmented Independent Control & 256 Level Programmable Brightness Adjustment Control System: SBK4000 Fully Closed-loop Control Motor: �TIGER” Synchronous AC Servo Motor Operated Mode: Software + Joystick
