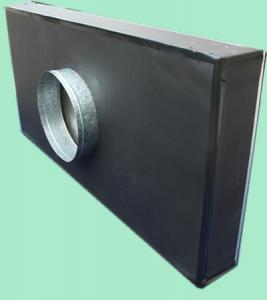

Air outlet hepa box - Product

Brand : JEFIL
Model : ZJ-FK530
Material : Aluminum
Color : WHITE
Expiry/Validation Period : 30DAYS

Size or Volume : 320*320
Weight : 5KG

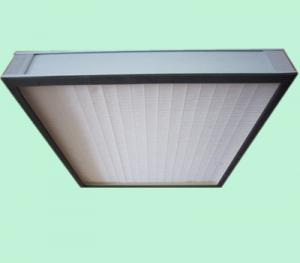

Other Specification : The Housing Is Made Of Cold Rolled Steel Sheet, Electrostatic Spraying Surface, Including Electrostatic Box, HEPA Filter And Flowing Panel, It’s Widely Used As Terminal High Efficiency Filtering Device In Rebuilding Or New-building 1000-300000 Different Class Clean Room,with Advantage Of Less Cost And Easy Construction Etc. Feature: Electrostatic Box Is Made Of Low Carbon Steel, HEPA Filter And Electrostatic Box Is Made As A Unit. There Is A Control Valve On The Electrostatic Inlet To Control The Air Uniformity And Electrostatic Effect. 2.Light, Easy To Install, Especially Suitable For Aluminum Alloy Keel Structured Clean Room. Box Dimension Mm Filter Size Mm Rated Airflow M3 /h Air Inlet Size Mm Duct Connection Size Mm Mounting Size Mm Ring Spacing Mm Weight Kg 370*370*530 320*320*220 500 200*200 250*250 438*438 344*344 20 534*534*530 484*484*220 1000 220*200 370*250 584*584*294*294 508*508 26 660*660*460 610*610*150 320*250 370*300 716*716*358*358 634*634 30 680*680*530 630*630*220 1500 320*250 370*300 736*736*368*368 654*654 35 966*660*460 915*610*150 500*250 500*300 1022*716*511*358 939*634 40 1018*534*530 968*484*220 2000 500*200 550*250 1074*590*537*295 992*508 50 1270*660*460 1220*610*150 550*250 550*250 1326*716*332*358 1244*634 55 1310*680*530 1260*630*220 3000 650*250 650*300 1366*736*455*368 1284*654 60
