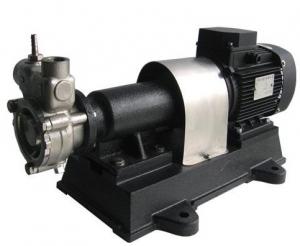

Multi-plunger diaphragm pump - Product

^{MINIMUM QUANTITY^{1 SET}}

Place of Origin : Beijing,China
Payment Terms : TT

Product Description

Selection Table
Type Pressure（MPa） Flow（m3/h） Rotating speed（r/min）
H2S-30 0-10 0-0.4 0-600
H4S-30 0-10 0-0.8 0-600
H2S-50 0-10 0-1.3 0-550
H4S-50 0-10 0-2.6 0-550
H2S-75 0-10 0-3.2 0-500
H4S-75 0-10 0-6.4 0-500
H2S-100 0-10 0-8.5 0-450
H4S-100 0-10 0-17 0-450
H2S-125 0-10 0-14 0-400
H4S-125 0-10 0-28 0-400
H2S-160 0-10 0-31 0-400
H4S-160 0-10 0-62 0-400
H2S-200 0-10 0-53 0-350
H4S-200 0-10 0-106 0-350

Basic Information

Brand : Hichine
Model : H2S/H4S
Material : SS

Physical Specification

Other Specification : Features 1. Corrosion Resistant And Wear Resistant Special Materials With High Corrosion Resistance And Wear Resistance Are Used For The Body And Chamber Of The Pump. 2. Easy To Maintain With Low Cost No Need To Open The Pump Body In Order To Change Diaphragm And Valve. 3. High Pressure & High Efficiency Motor Efficiency Could Be As High As 85% And Pressure Could Be 0~150kgf/cm² 4. Low Nosy And Low Ripple Smooth Operation Due To Multi-plunger Structure. Additionally, Oil Pressure Drive Diaphragm Can Control The Pulse And Maintain Low Noisy. 5. User-friendly Defects Related Shaft Sealing Can Be Avoided Due To O Seals In This Pump And No Water Exhaling Due To Effective Self-suction. The Bilateral Rotation Of The Pump Shaft Makes It Easy For Operation. Application 1. To Deliver Slurry Containing Fine Particles, Such As Dye Slurry, Paint Slurry, Etc. So As To Match High Pressure Granulation Equipment, Etc. 2. Reverse Osmosis Membrane Pressurized Water Delivery Equipment And Matching Valve Pressure Test Equipment Of Sea Water Desalinating Unit, Ultra Pure Water Preparation Equipment, Etc. 3. To Convey Sludge To Pressure Filter, Inhale Sludge From Or Convey Sludge To Gas Explosion Groove. 4. High Pressure Cooling Liquid Of Deep-hole Drilling Machine And Machining Centre For Deep-hole Processing Or Ceramic Grinding. 5. The Cleaning Of Precision Machining Components, Printed Circuit Board And Post Processing Of Burr. 6. The Swill Of Food Factory Conveyor Belt Or Machine; High-pressure Cleaning Of Ships Or Vehicles. 7. To Convey High Tricky Liquid, Such As Glue, Adhesive, Jam, Wheat Paste, Cream, Etc.
