Place of Origin : Dengzhou,China
Mesh Screen for Fine and Thin Extrusion to Prevent Foreign Particles in Plastic Industries
Extruder Screen Packs: Spot Welded Packs and Framed, with woven mesh, perforated screen, sintered mesh and etched Mesh plate As filter media layers
Types: Multi-layer Filter Media Edge Covered Disc, Welded Disc With Rims.
The Spot-welded Wire Mesh Filter Packs Have An Aluminium Or Stainless Steel Rim Around Discs Offering Greater Rigidity And Strength Compared With Mesh Discs With No Rims Or Frames.
Disc Sizes: any Size Available According To Requirement.
Material: Stainless Steel 304,316,316L, Or Black Wire Cloth, Etc.
Mesh Types: Woven Mesh, Dutch Mesh, Perforated Mesh, Sintered Mesh, Etched Mesh Sheet,etc.
Layers: 2, 3, 4, 5 Layers
Extruder Screen Packs Shapes:
Round, Rectangle, Leaf, Oval And Other Shapes.
Multilayer Extruder Screen Is Used For Fine And Thin Level Of Extrusion To Prevent The Mixing Of Foreign Particles. The Filter Screen Packs Help In Making Extrusion More Clear And Clean. We Offer Metal Screen Packs Available In Standard And Customized Sizes As Per Your Specifications. Multilayer Mesh Screen Are Welded With Or Without Selvage.
Materials: Plain Steel Wire Mesh And Stainless Stee Wire Mesh Can Be Welded Together.
Extruder Screen Is Applied In The Following Fields:
Petrochemical Industry
•Plastic And Rubber Industry
•Chemical Industry
•Aeronautic Industries
•Water Treatment Plant
•Food Processing Industries.

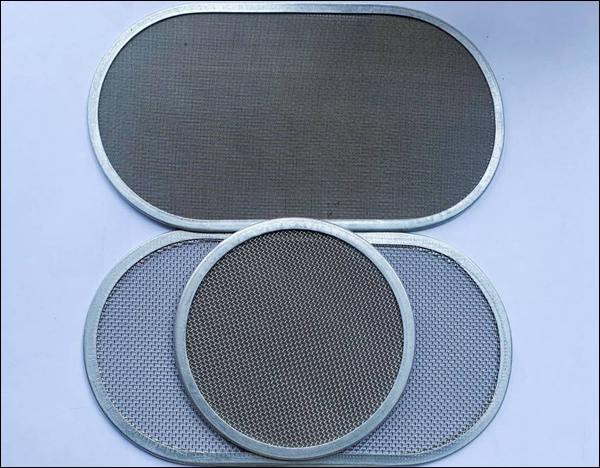

Extruder Screen Filter, Two Layers ( Backing Mesh And Filter Mesh), For Extruder Machine
Screen Filter Mesh For Extruder Machine:
Screen Filter Mesh Size 2.5" 40, For Backing
Screen Filter Mesh Size 2.5" 300 For Filtration
Mesh Type: Woven Wire

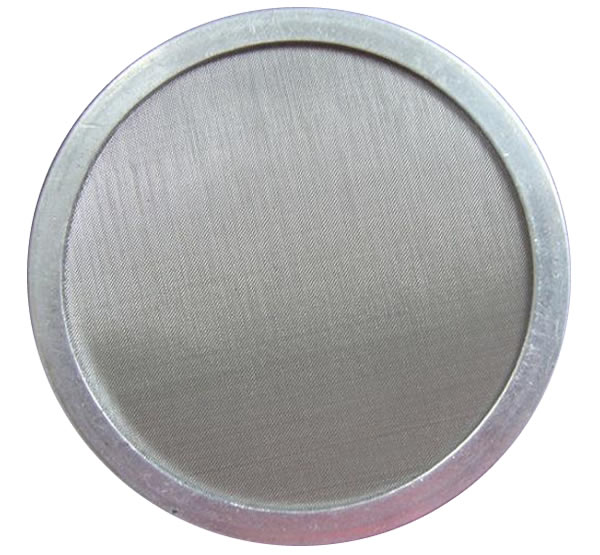

49-50mm Round Shape Wire Multilayer Extruder Screen Packs
Multilayer Extruder Screen Packs: 49-50mm, 0.1mm + 1mm Mesh Screen, And 0.3mm + 1mm Screen, Double Layer.
Mesh Type: Woven Wire

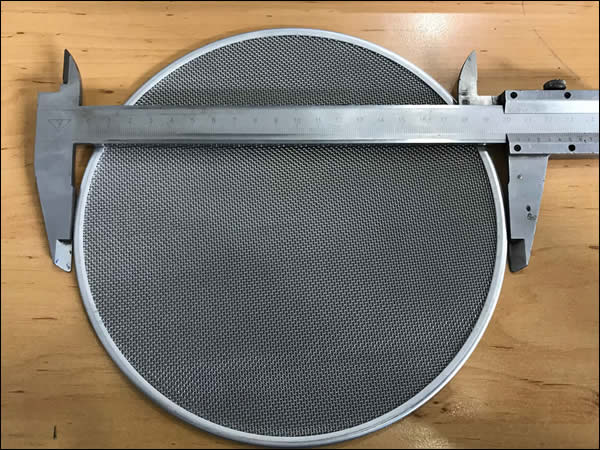

Multi (4) Layer Stainless Steel Round Screen Extruder Filter Disc Mesh For Extrusion Machines
Mesh Disc Filter Screen For Extruder With Specification Below:
Material Filter: Stainless Steel 304
4 Layers Filter Mesh:
20/80/100/60 Stainless Steel Mesh
40/60/80/100 Stainless Steel Mesh
Material Frame: Aluminum
Dia. 200 Mm
Mesh Type: Woven Wire

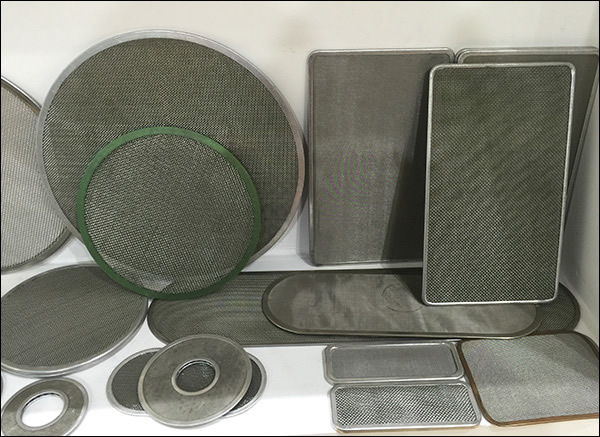

Stainless Steel Extruder Filter Mesh For Plastic Pellet Machine
Filtering Screen, 300mm, Stainless Steel, 50 Mesh X 0.2mm Wire
8" PVC Pipe - Extruder Screen
Extruder Screen With Dimension Of O.D.: 7.8", Mesh Size: 8X8 (0.0937" Openings), And 0.04" Wire Diameters
Mesh Type: Woven Woven
