Place of Origin :
Delivery Time : 15 Days After Receive Payment
Payment Terms : T/T

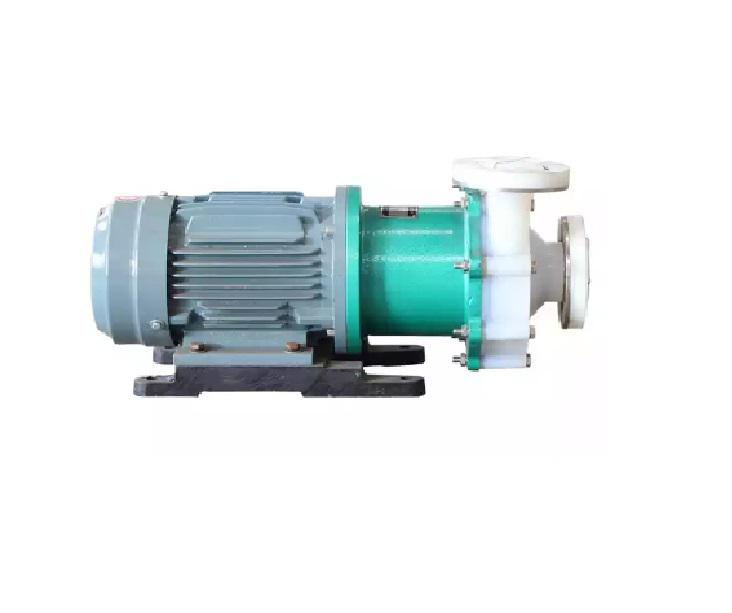

it is an single stage end suction Fluorine plastic Teflon (Fluoriated Ethylene Propylene ) Lining chemical centrifugal pump . it is in accordance with International Standards and Non-metallic pump technology combined with design and manufacturing.
Pump body metal shell lined with FEP (F46), pump cover, impeller and the sleeve are embedded pieces of metal fluorine plastic .outsourcing from the overall suppression of sintering, the use of outside-mounted seal advanced bellows mechanical seal
It Is Single Stage End Auction Horizontal Type Lining Fluorine Plastic Chemical
process Centrifugal Pump . It Is Belong To Non-metal Pump.
HG/T3183-1989
China Technical Conditions
(Fluorine Plastic Lining Single Stage Singe Suction Chemical Process
Centrifugal Pump Technology Conditions )
3. Pump Designations And Descriptions
Foot-mounted ,single -stage Single Suction Overhung Pumps Shall Be
designed Pump With OH1 Type.
? Reliable Mechanical Seal
it Is Choose Advance Bellows Single End Face Mechanical Seal .
it Is Outside Seal Type , Stationary Seal Is 99.9% Alumina Ceramic (AIC ) Or
Silicon Carbide (SIC) , Rotating Seal Is Made PTFE Filling Material Or According
to Customer Request.it Have Good Sealing Performance.
? Advantage:
High Corrosive, Well Leak Proof, Easy Assembly And Maintenance
? Pump Specificaiton :
| Model No |
Flow Capacity (m3/h) |
Pump Head ( M) |
Horse power (kw) |
Motor Parameter | Standard Motor Or Explosion Motor |
| IHF50-32-125(D) | 12.5 | 20 | 3 | B35/3phase/50Hz/380V/2900rpm | Yes |
| IHF50-32-160(D) | 12.5 | 32 | 4 | B35/3phase/50Hz/380V/2900rpm | Yes |
| IHF50-32-200(D) | 12.5 | 50 | 7.5 | B35/3phase/50Hz/380V/2900rpm | Yes |
| IHF65-50-125(D) | 25 | 20 | 3 | B35/3phase/50Hz/380V/2900rpm | Yes |
| IHF65-50-160(D) | 25 | 32 | 5.5 | B35/3phase/50Hz/380V/2900rpm | Yes |
| IHF80-65-125(D) | 50 | 20 | 5.5 | B35/3phase/50Hz/380V/2900rpm | Yes |
| IHF100-80-160(D) | 100 | 20 | 15 | B35/3phase/50Hz/380V/2900rpm | Yes |
