Alia Smart Differential Pressure Transmitter ADP9000 - Product

^{MINIMUM QUANTITY¹}

Place of Origin : Los Angeles,United States

Product Description

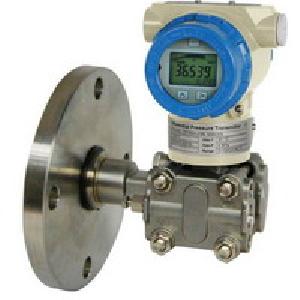

ADP9000 series is a digital Differential pressure transmitter designed for industrial pressure measurement applications.The ADP9000 offer of Configurations for Differential, gas, absolute Vacuum liquid-Level measurements including integrated solutions for pressure, level and flow.

Basic Information

Brand : ALIA GROUP INC.
Model : ADP9000

Physical Specification

Other Specification : FEATURES Updating Time Of Output Current In 200 Ms Improved Performance, Increased Accuracy, Greater Stability Two Years Stability Of 0.2% 0.075% Accuracy Parameter Setting By Local Keypad Or RS485 Communication Port 4-20 MA Output Plus Direct Digital HART Communication Automatic Zero Calibration By Push Button Explosion Proof And Weather Proof Housing SPECIFICATION Process Fluid:Liquid, Gas Of Vapor Application:Differential Pressure, Gauge Pressure,Absolute Pressu Measuring Range:0 - 0.25 Kpa ~ 0 - 1.5 Kpa ( Minimum ) 0 - 4.0 Mpa ~ 0 - 25.0 Kpa ( Maximum ) Accuracy:+/- 0.75% Of Span Material: Flange/Adapters:Stainless Steel 304 / Stainless Steel 316 Drains/Vents:Stainless Steel 304 / Stainless Steel 316 Diaphragms:Stainless Steel 316L / Hastelloy B /Hastelloy C / Monel / Tantalum Wetted O-Rings:Buna N / Viton / PTFE Bolts & Nuts:Carbon Steel / Stainless Steel 316 Mounting Bracket:Carbon Steel / Stainless Steel 304 / 316 Name / Tag Plate:Stainless Steel 304 / Stainless Steel 316 Converter Housing:Low Copper Cast Aluminum Alloy With Polyurethane, Light Blue Paint Enclosure:IP67 ( Standard )/Intrinsically Safe EEx Ia IIC T5 ( Standard )/EX
