SST20 Inclinometer - Product

^{UNIT PRICE¹}

^{MINIMUM QUANTITY¹}

^{WARRANTY^{12 MONTHS}}

Place of Origin : Shanghai,China
Delivery Terms : 3-5 Days Upon Receipt Of Your Payment
Delivery Time : 3-5 Days
Product Capacity : 5000pcs/Year
Payment Terms : T/T

Product Description

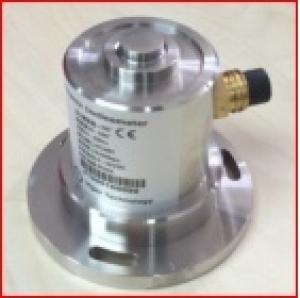

SST20 inclinometer based on Vigorâ€™s advanced tilt measurement technology, to meet with low cost, high reliability and volume application, performs high performance-cost ratio.
SST20 employed most universal & mass-produced components, casting aluminum alloy house, universal high reliability M12-5pin industrial connector; full epoxy seal with IP69K protection, auto-test/calibration equipment which not only ensure delivery speed, also keep the consistency of goods.

Basic Information

Brand : Vigor
Model : SST20
Material : Aluminium Alloy

Physical Specification

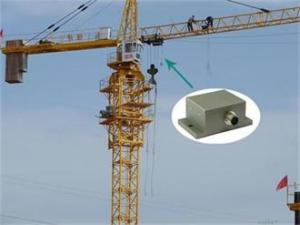

Other Specification : Features - Low Cost, High Performance, Suitable For Batch Application - 50Hz Refresh Rate, 10Hz Response Frequency - Â±0.07Â°accuracy@-15~50℃ -Â±0.2% Cross-axis Error - Available To Horizontal, Vertical, Headstand, Etc Installation Methods - IP67protection - 9~36VDC Power Supply - Sensing Elements Survive To 1500g Shock While Operating Applications Vessel, Engineering Machinery, Solar/wind Energy, Automobile/truck/vehicle, Communication/electric Tower Monitoring, High-voltage Pylon Monitoring, Antenna, Construction Engineering, Landslide, Etc
