Place of Origin : Xiangtan,China
Payment Terms : FOB Shenzhen

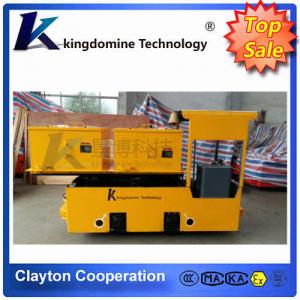

Model No.CAY5/5,6,7,9G
Specifications
Adhesive / total weight (t) 5
Track gauge (mm) 500,600,762 or 900
Traction (KN) 7.06
Max. Traction (KN) 12.26
Speed(km/h) 7
Max. Speed(km/h) 14
Battery Voltage (V) 90
Battery Capacity (Ah) 330
Power (KW) 7.5*2
Dimensions Length(mm) 3100
Width(mm) 1034，1082，1220
Height(mm) 1550
Coupler height(mm) 210/320
Wheelbase (mm) 850
Wheel diameter (mm) 520
Min Curve radius (m) 6
Controller Resistance
Braking method Mechanical Brake
Electrical Brake
