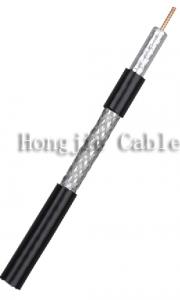

RG6 coaxial cable - Product

Place of Origin : Hangzhou,China

Product Description

For use with audio/video, radio frequency and closed-circuit transmission applications

Physical Specification

Other Specification : Construction Conductor CU/CCS 1.02mm Dielectric FPE 4.57mm 1st Shield Bonded Al Foil 4.75mm 2nd Shield CU/AL/CCA 5.38mm Jacket PVC 6.91mm Electrical Characteristics Impedance 75 Ohms Velocity Of Propagation 85% Capacitance 52pF/m Return Loss 5-1000MHz ≥22dB 1000-2000MHz ≥20dB Attenuation(20℃） 5MHz 1.90dB/100m 55MHz 5.25dB/100m 211MHz 10.00dB/100m 250MHz 10.82dB/100m 300MHz 11.64dB/100m 400MHz 13.61dB/100m 500MHz 15.29dB/100m 600MHz 16.73dB/100m 750MHz 18.54dB/100m 865MHz 20.01dB/100m 1000MHz 21.49dB/100m
