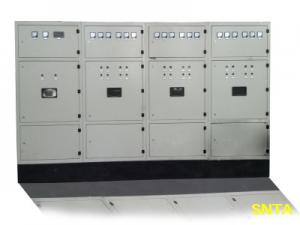

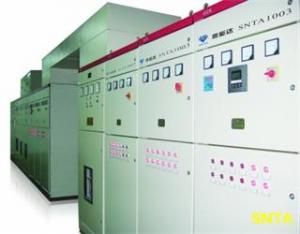

SNTA1008 Power Safety Purification Plant (APF) - Product

^{MINIMUM QUANTITY^1SET}

^{WARRANTY^{ONE YEAR}}

Place of Origin : Beijing,China
Delivery Time : Within 45days
Product Capacity : 100 Sets/Month
Payment Terms : T/T Or L/C

Product Description

SNTA1008 PSPP series make dynamic filtering to
high-order harmonics, dynamic compensation to reactive power, and suppress the device with voltage fluctuations and flicker, which are mainly used for grid users of non-linear loads, such as shipbuilding, steel rolling, automobile manufacturing, paper making, textile and other industrial fields; electrified railway, underground railroad, trolley buses and other traffic areas; broadcasting, postal services, telecommunications, harmonic-interferen

Basic Information

Brand : SNTA
Model : Series

Physical Specification

Weight : About 550kg
Other Specification : ● Low DC-side Voltage, Only 200 V Required, That Has Effective Improved The Life Of Both IGBT And DC Capacitors, Is The National Initiative (patent Number: 201020502500.2). ● Easy To Install On Site, Especially For Renovation Projects, No Current Transformer Needs To Be Added, Instead Of The Original And The PSPP Owns Can Implement The Monitoring And Control Of Harmonics. ● 10-inch High-definition Touch Screen, Friendly Man-machine Interface, Providing Complete On-site Information, Historical Information, And Power Quality Comparison Before And After Filtering. Not Only Harmonic-filtering Function, But Also Harmonic-detecting Function That PSPP Gives You, By Such A Screen You May Conventionally Know About Harmonics In Your Grid And The Quality Of The Electrical Energy. ● Modular Design, Pre-installation, Ease Of Maintenance. ● High Harmonic Filtering Efficiency, Effectively Filter Out The 2nd - 50th Harmonics, Also To The Order-given. ● Fully Digital-control DSP, With High-speed Detection And Operation, Responds Quickly To The Dynamic Changes Of Load, A Full Response Time Of Less Than 5 Ms, Ensures Accurate And Efficient Harmonic Detection And Compensation Control, And Gives A Full Inhibition Of Voltage Fluctuations And Flicker. ● Can Dynamically Compensate For Single-phase Or Three-phrase System Harmonics, And The Compensation Effect Meets The National Standard GB/T14595-93 Quality Of Electric Energy Supply â€“ Harmonics In Public Supply Network. ● No Overload Phenomenon, Always Run Reliably Even When Encountering Big Harmonic Current. ● Its Filtering Effect Is Free From Systemic Impedance Changes, Without Syntony And Harmonic Amplification. ● Filtering, Or Filtering And / Or Reactive Power Compensation, You Chose. ● Easy To Operate And Maintain, And Multiple Parallel Operation Can Also Be Done. ● Centralized Compensation Or Decentralized Compensation Is Bas
