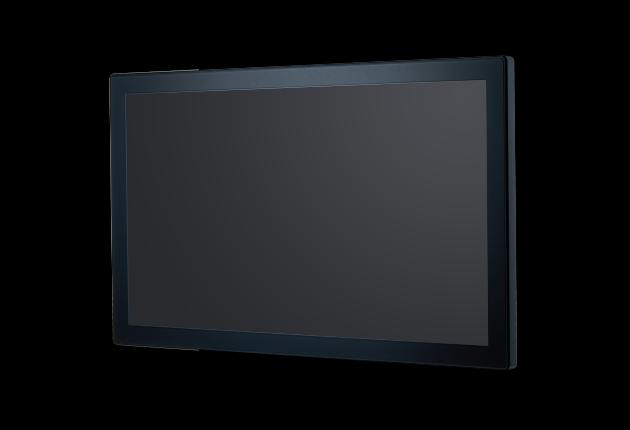

IX3000 SeriesInfrared Touch Screen - Product

Place of Origin : Beijing,China

Product Description

Mechanical Specifications
Touch points: 5 points
Available size: 10.4~23.6 inches
Glass: 3mm tempered glass
Transmittance: >88%
Shell material: Front shell: polycarbonate (PC), back shell: galvanized sheet (SGCC)
Electrical Specifications
Technical principle: Infrared block detection
Infrared Touch Screen Touch accuracy: center <1mm, edge <2mm
Power supply specifications: USB power supply (DC5V± 5%@500mA)
Power consumption: <1.5W
MTBF: 61000Hours
Interface Types
USB(default), COM

Physical Specification

Other Specification :

Mechanical Specifications

Touch Points: 5 Points
Available Size: 10.4~23.6 Inches
Glass: 3mm Tempered Glass
Transmittance: >88%
Shell Material: Front Shell: Polycarbonate (PC), Back Shell: Galvanized Sheet (SGCC)

Electrical Specifications

Technical Principle: Infrared Block Detection
Infrared Touch Screen Touch Accuracy: Center <1mm, Edge <2mm
Power Supply Specifications: USB Power Supply (DC5V± 5%@500mA)
Power Consumption: <1.5W
MTBF: 61000Hours

Interface Types

USB(default), COM
