AC motor capacitor - Product

^{UNIT PRICE²}

^{MINIMUM QUANTITY⁵⁰}

Place of Origin : Shizuishan,China
Delivery Terms : 30days
Payment Terms : T/T

Product Description

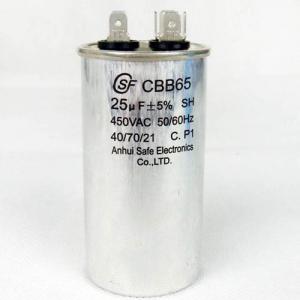

AC motor capacitor
We have reasonable price; 15years experienced manufacturing; perfect equipment and automatic machines

1) Capacitance: 1 - 100uF
2) Capacitance tolerance: ±5%
3) Working voltage:220- 600VAC
4) Temperature range: -40 - +70°C
5) It is applied for refrigerators, fans, electric pumps, washing machines, air exhausters, and air-conditioners

Basic Information

Brand : Csf
Model : CBB65/61/60

Physical Specification

Other Specification : 1, Small, Light Weight, 2, Very Low Loss, Long Lifespan, Good Self-healing 3, High Insulation Resistance, Safety And Stable. 4, Suitable For The Start-up And Running Of Various AC Motor, Especially For Washingmachines, Micro Water Pumps, Cleaning Machines Etc. Specification: 1)Climate Type: 40/70/21 2)Capacitance Tolerance: +/-5%, +/-10% 3)Rated Voltage: 250VAC-630VAC 4)Rated Frequency: 50/60Hz 2. Testing Voltage: A) Between Leading-out: 1.75UR, 10S No Breakdown B) Between Leading-out End And Shell: 2200V AC, 10S No Breakdown 3. Insulation Resistance: ≥ 3, 000 MΩ . UF, Tangent Of Loss Angle: Tg≤ 0.002(50Hz)
