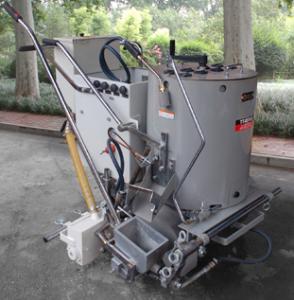

Forward Self-Propelled Pedestrian Road Marking Machine - Product

Other Specification : 1. Engine: Japanese Honda 3.0HP Gasoline Engine. 2. Driving System: International Famous Brand Imported Oil Pressurized Continuously Variable Speed Transmission System (HTS) With Automatic Brake Device That Can Freely Go Ahead, Back Off And Stop. Driving Speed: Forward 0-4km/h, Back Off 0-3km/h. Maximum Climbing Capacity: 15°. 3.Operation And Directional: Forward Type Operation Overcomes The Disadvantages That General Pedestrian Road Marking Machine Must Backward Move, Ensures Marking Quality. Lockable Directional Device Of Front Wheel Overcomes The Problem That It Is Inconvenient To Turn Direction For General Pedestrian Road Marking Machine, Ensures Marking Machine Moving In Straight Line And Turning Freely In Curved Road, Marking Construction Is Much Easier, Faster And Efficient, Marking Quality Is Much Better. 4. Guid Rod: Chromeplated Device, Easy To Adjust Up, Down, Left And Right, Which Makes The Construction Accurate. 5. Marking Speed And Width: Speed Of 6-8km/h Is Two Times Faster Than Common Pedestrian Machine. Marking Width Is Optional (350/400/450/500mm) According To The Requirement Of Customer. 6. Marking Shoe: Integrative Marking Shoe And Paint Tank Hang Inside Of Chassis. The Knife Underframe Is Double-closed Screeding Structure Which Is Made Of Alloy Steel With Imported Heat Resistance, Abrasion Resistance And Oxidation Resistance. The Sieve In The Paint Tank Effectively Removes Impurity In Paint. Floor Knife That Contacts With The Ground Directly Adopts Imported Hard Tungsten Steel Knife-head, Which Has Good Anti-sticky Ability And Abrasion Resistance To Ensure Marking Straight And Neat. 7. Heating Mode: Petroleum Liquefied Gas Tank Supplies Gas To The Frontal, Back Nozzle And Igniter, The Power Is Controlled By Different Valves Respectively. The Valves And Nozzles Are Imported Parts, And The Connecting Pipes Are Imported Rubber Pipe
