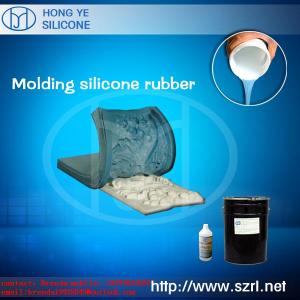

Liquid Pad Printing Silicone Rubber Material - Product

^{UNIT PRICE¹⁸}

^{MINIMUM QUANTITY^100KG}

Place of Origin : Shenzhen,China
Delivery Terms : Shipping
Delivery Time : Within 3 Days After Payment Confirmed In Our Bank
Product Capacity : 8 Ton Per Day
Payment Terms : L/C At Sight, T/T, Western Union

Product Description

1. Applications of liquid pad printing silicone rubber
Pad printing silicone rubber is mainly use for printing irregular patterns of plastic toys, electroplating toys and trade makers . Pad printing silicone rubber as a carrier which transfer patterns on the steel plate to the toys products surface.

Basic Information

Brand : Hong Ye Silicone Rubber
Model : HY901, HY902, HY912， HY916
Material : Silicone Rubber
Color : White/ Off-white/ Blue/ Red/ Yellow

Physical Specification

Other Specification : Price: 8-20usd/kg Specification - Durable - Good Effects For Printing - Good Quality Without Any Impurity - Good Resilience - Adjustable Hardness 2. Features Of Liqiud Pad Printing Silicone Rubber A. Resistance To Deformation, High-temperature B. High Printing Times C. Good Aging Resistance D. Exceptional Elasticity E. Great Printing Effect 3. Operation Instructions Of Liquid Pad Printing Silicone Rubber Pad Printing Silicone Rubber Is Two-component Silicone, Part A Is Liquid Silicon Rubber, Part B Is Catalyst. The Usual Mixture Of Silicone Rubber And Catalyst Is 100: 2 Or 100: 3. E.g. We Take 100g Of Liquid Silicon Rubber And 2g-3g Catalyst, Mix Them And Pour It To Your Mold. A Fter 2-4 Hours, You Will Get A Pad Printing Silicone Rubber. 4. Technical Datasheet Of Liquid Pad Printing Silicone Rubber Model Appearance Viscosity (cs) Hardness (Ao) Tensile Strength (kgf/c) Tear Strength (kgf/cm) Shrinkage (%) Elongation (%) Mixing Ratio(%) Operating Time(H) Curing Time(H) HY918 White 18000~20000 22~24 ≥32 ≥20 ≤0.3 ≥500 2~3 0.5 2~4 Model Color Mixing Ratio (%) Pot Life (mins) Demould Time (hrs) Hardness(A0) Tensile-stength (N/m2) Tear-strength (N/mm) Viscosity (cps) Elongation (%) HY928 Red 9:1 30 4Ã‚Â±1 30 5.5 27 17000-20000 500 5. FAQ Of Pad Printing Silicone Rubber Why The Silicon Pad Is Non-durable？ This Problem Is Caused Not By The Liquid Silicon Rubber Itself, But In The Process Of Filtering, The Filtering Handled Not Properly And Impurities Are Not All Filtered Out; Or In The Process Of Packing As Containers Not Cleaned Thoroughly. As The Silicon Oil Will Break The Molecular Chain Of The Silicon Rubber. More Silicon Oil Added, Softer The Pad Printing Will Be, Meanwhile Nondurable And Easy Ageing It Will Also Turn To Be. Some Customers Do Not Know Well About The Performance Of Silicon Rubber.
