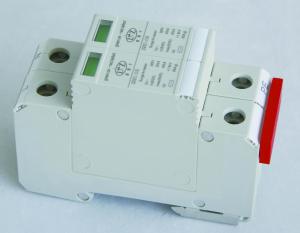

LZA-30A/50A Power gap lightning protection device - Product

^{MINIMUM QUANTITY^100PCS}

^{WARRANTY^{5 YEARS}}

Place of Origin : Shenzhen,China
Delivery Terms : Delivery Against Payment In Our Bank
Delivery Time : 7-30days
Product Capacity : 10000pcs/month
Payment Terms : FOB China Main Port

Product Description

LZA-30A/50A are applied to equipotential bonding of the low voltage side of transformer or main low voltage distribution boxes inside the building, providing protection against the overvoltage arising fromthe lightning strike to power supply system of class I or faulty operation,but they are not applied to the systemof the expected short-circuit current beyond rated breaking afterflow current. The series fuse must be at the front-end of the product.

Basic Information

Brand : LZZ
Model : LZA-30A,LZA-50A
Material : Enhanced Flame Retardant Nylon (flame Retardancy:V0)
Color : Light Gray

Physical Specification

Other Specification : Main Technical Data Type LZA-30A LZA-50A Impulsive Discharge Current Iimp (10/350) KA 30 50 Rated Load Voltage Un V 230 Max. Continuous AC Voltage Uc 255 Voltage Protection Level Up KV ＜0.8 Ability Of Anti-short-circuit Of The Max. Backup Fuse 50kA Rated Breaking Afterflow Current 3kA Insulation Resistance ＞5MΩ Response Time Ns ＜100 Compound Mode 1P、2P、3P、4P Enclosure Material Enhanced Flame Retardant Nylon (light Gray ,flame Retardancy:V0) Max. Backup Fuse/airbreak Switch 250A GL Cross-sectional Area(max) ≥16mm2 Stranded/flexible
