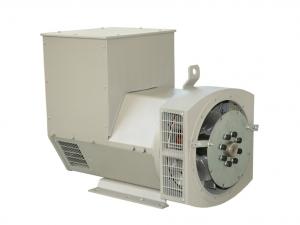

brushless synchronous ac alternator(250-400kva) - Product

^{MINIMUM QUANTITY²}

^{WARRANTY^{2 YEARS}}

Place of Origin : Yangzhou,China
Product Capacity : 900/year
Payment Terms : T/T;L/C

Product Description

Model:JDG314
Votage:110V-690V
power:250-400KVA / 200KW-320KW
standard: IEC
insulation:H
Temperature class:H
frequency:50Hz/60Hz
rotational speed:1500rpm/1800rpm
warranty:2 years
protection grade:IP22
single-phase as an option
single bearing or double bearing for your chioce
4 poles
AVR controlled
12 wire reconnectable winding
100% famous brand copper wire
2/3 pitch windings aviod excessive neutral currents
dynamically balanced rotor and sealed-for-life bearings

Basic Information

Brand : Godlike
Model : JDG314

Physical Specification

Weight : 1183KG
Other Specification : Eight Model Of JDG314: JDG314C(250kva); JDG314DS(275kva); JDG314D(300kva) JDG314ESS(312.5kva); JDG314ES(325kva); JDG314E(350kva); JDG314FS(380kva); JDG314F(400kva);
