Place of Origin : Hebei,China

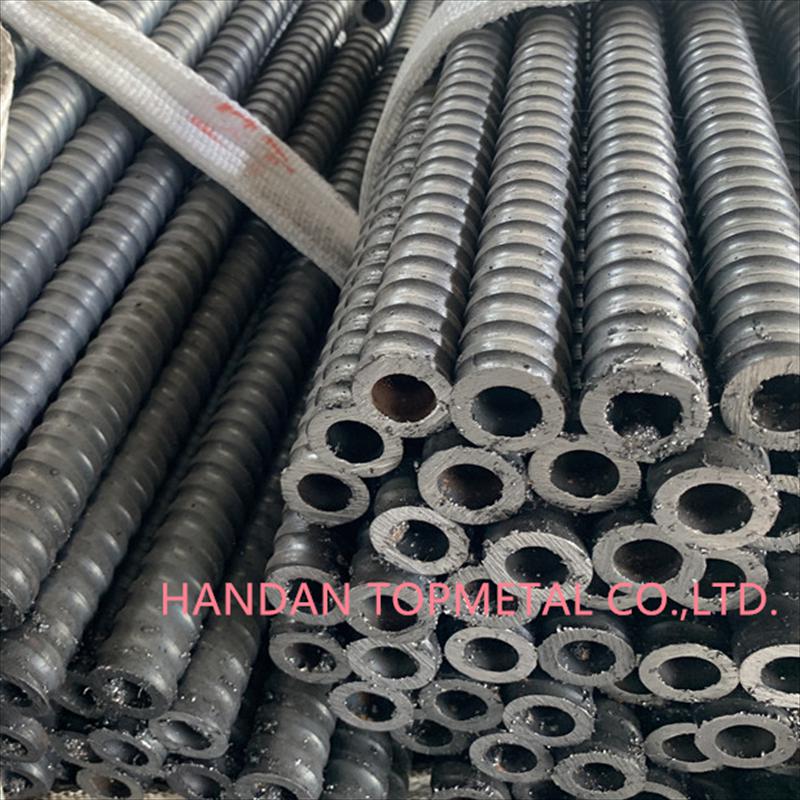

Prestressing screw bars are rolled externally threaded in large diameter, high strength, high dimensional accuracy of straight bars. The bars can be connected at any cross section though coupling or screwed anchored.Prestressing screw bars are widely used in large-scale water conservancy projects, industrial and civil construction of continuous beam and large frame structure, roads, railways and middle bridges, nuclear power plants and other projects anchor.
| Steel Grade | Yield Strength Mpa |
Tensile Strength Mpa |
Elongation At Failure A% | Uniform Elongtion Agt% | Stress Relaxation | |
| Original Stress |
Relaxation Rate After 1000h R/% | |||||
| PSB500 | ≥500 | ≥500 | ≥10 | ≥3.5 | 0.7Rm | ≤4.0 |
| PSB785 | ≥785 | ≥980 | ≥8 | ≥3.5 | 0.7Rm | ≤4.0 |
| PSB830 | ≥830 | ≥1030 | ≥7 | ≥3.5 | 0.7Rm | ≤4.0 |
| PSB930 | ≥930 | ≥1080 | ≥7 | ≥3.5 | 0.7Rm | ≤4.0 |
| PSB1080 | ≥1080 | ≥1230 | ≥6 | ≥3.5 | 0.7Rm | ≤4.0 |
