Perbunan Seal Rotary Tandem Hydraulic Pump , 18cc Displacement - Product

Place of Origin : Nantong,China
Delivery Time : 15days

Product Description

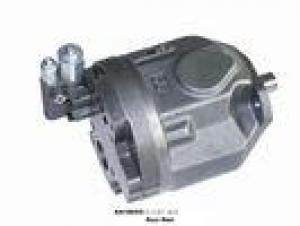

Perbunan Seal Rotary Tandem Hydraulic Pump , 18cc Displacement

Quick details

Tandem Hydraulic Pump

Pressure and Flow control

Clockwise Rotation

Perbunan seals

for Hydraulic system. Ship Hydraulic system

18cc Displacement Tandem Hydraulic Pump

Axial piston pump, displacement is 18cc.

Pressure and Flow control

Clockwise Rotation

Perbunan seals

Splined shaft

SAE 2 hole UNC inch thread

Thru-drive Rear Cover, can connect another pump

Specifi

Physical Specification

Other Specification : Perbunan Seal Rotary Tandem Hydraulic Pump , 18cc Displacement Quick Details Tandem Hydraulic Pump Pressure And Flow Control Clockwise Rotation Perbunan Seals For Hydraulic System. Ship Hydraulic System 18cc Displacement Tandem Hydraulic Pump Axial Piston Pump, Displacement Is 18cc. Pressure And Flow Control Clockwise Rotation Perbunan Seals Splined Shaft SAE 2 Hole UNC Inch Thread Thru-drive Rear Cover, Can Connect Another Pump Specifications: - - - - Specifications: | | | | 16/18 | 28 | 45 | 71 | 100 | 140 | Displacement | | Vg Max | Cm3 | 18 | 28 | 45 | 71 | 100 | 140 | Max Speed | | Nmax | Rpm | 3300 | 3000 | 2600 | 2200 | 2000 | 1800 | Max. Flow | In Nmax | Qv | L/min | 59.4 | 84 | 117 | 156 | 200 | 252 | In 1500 R/min | 27 | 42 | 68 | 107 | 150 | 210 | Max. Power (p=280bar) | In Nmax | Pmax | Kw | 27.7 | 39 | 55 | 73 | 93 | 118 | In 1500 R/min | 12.6 | 20 | 32 | 50 | 70 | 98 | Max. Torque (p=280bar) | In Vg Max | Tmax | Nm | 80.1 | 125 | 200 | 316 | 445 | 623 | Weight | | M | Kg | 12 | 15 | 21 | 33 | 45 | 60 | - - - - Applications: Hydraulic System. Ship Hydraulic System. Advantage: Good Quality, Competitive Price And Quick Delivery. Low Noise, SmallVolume
