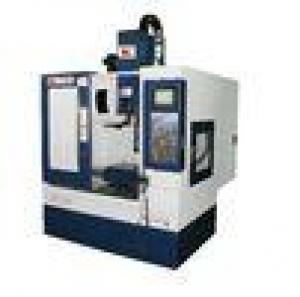

Linear Guideway Vmc Vertical Machining Center - Product

Other Specification : # # Type: CNC Vertical Machining Center, VMC Machining Center. # Guideway Type: Linear Guide Way. # Spindle Type: Direct Driven Spindle. # System: MITSUBISHI / FANUC Controller. # Number Of Axes: 3 / 4 / 5 Axis. # Table Size: 500*350 Mm. # Spindle Speed: 50-12,000/15,000 Rpm. # Function: Heavy Cutting,Milling,Drilling And Tapping,High Speed Madding And Engraving. # Dimension (L*W*H): 1650x2000x2000 Mm. Heavy Duty Vertical Machining Center, Linear Guide Vmc Machining Centers Digitally Controlled Drives Combined With Linear Guide Ways Lead To Short Positioning Times With The Highest Degree Of Precision. CNC Controls With Your Choice Of Mitsubishi Or Fanuc, Allow You To Finish Your Work Piece In The Shortest Possible Time.The HS-430HD Is Small Size Machine With Enhanced Fast Speed Processing Ability. This Goal Is Achieved By Spindle Speeds Of 10,000-24,000 Rpm, High Rapid Traverse Speeds Of 48m/min-60m/min. And Tool Magazine With A Double Gripper For Tool Exchange Times Of 1.6 Seconds. The Sturdy, Cast-iron C-frame Design Ensures Maximum Rigidity And Provides The Basis For High Milling Precision. Table Size: 500*350mm Travel OfX/Y/Z: 450*300*450 Mm Rapid Traverse X/Y/Z: 48/48/48 M/min Spindle Speed: 12,000 Rpm / 15,000 Rpm (Direct Driven) Specifications: - - - - Item | HS-430HD | Unit | X Axis Travel | 450 | Mm | Y Axis Travel | 300 | Mm | Z Axis Travel | 300 | Mm | Table Size | 500x350 | Mm | T-slot Size | 3x18x110 | Mm | Max. Load On Table | 250 | Kg | Spindle Taper | BT-30 | # | Spindle Speed | 50-12,000/15,000 | Rpm | Spindle Nose Table Surface | 160-460 | Mm | Spindle Center To Column Surface | 360 | Mm | Spindle Power | 5.5(7.5) | Kw(HP) | Spindle Torque | 35 | N.M | X/Y Axis Rapid Traverse | 48,000/48,000 | Mm/min |
