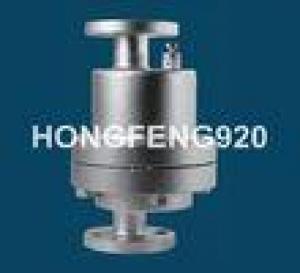

Ball Float Steam Trap with bimetallic air vent - Product

Other Specification : Ball Float Steam Trap With Bimetallic Air Vent Quick Details: Model: G15 Material: Casting Steel WCB Temperature: 425 Working Media: Steam, Condensate Water End Connection: FlangeD & Socket Weld Specifications Ball Float Steam Traps Double Ported Balance Valve System Small Size But Large Capacity Automatic Air Vent & Strainer Easy Maintenance Design Pressure: PN25 Pressure: 0.01 - 1.6 Mpa Material: Casting Steel WCB Temperature: 425 Working Media: Steam, Condensate Water End Connection: FlangeD & Socket Weld Ball Float Steam Traps Are Unaffected By Pressure And Discharge Condensate Continuously. Ball Float Steam Trap / Float Steam Trap / Mechanical Steam Trap G15: 1. With Double Ported Balance Valve System, The Trap Is Small In Physical Size Large In Discharge Capacity, Can Show Superiority In The Low Pressure Condition. 2. Built In Bi-metal Aotomatic Air Vent To Prevent Air Locking, And Rapid Start-up Is Provided. 3. All Internal Parts Are Easily Accessible Without Having To Remove The Trap From The Line. 4. All Steam Traps Supplied By Hongfeng920 Are Designed For Easy And Quick Maintenance. Applications: This Steam Trap Is Suitable For Large Steam Heating Equipment Of Low Pressure That Used In Industries Of Petroleum, Chemistry, Metallurgy, Electric Power, Food, Pharmacy, Etc.
