three lobe roots blower - Product
UNIT PRICE
500-2000 USD/UN ...
Place of Origin : Jinan,China
Delivery Terms : 50% T/T In Advance,balance Against Copy Of B/L
Delivery Time : Within 1 Month
Product Capacity : 400 Unit/month
Payment Terms : FOB
Product Description

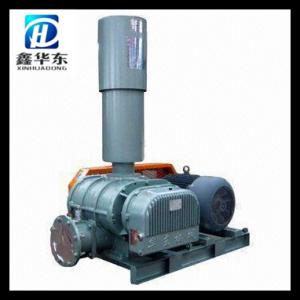

HDSR series tri-lobe roots blower is a new product developed by our Company, it consolidated on the basis of the advanced technical features of various models of roots blower domestic and International. The products developed using Advanced CAD design and processing technology to ensure the blower quality and performance.
Basic Information
Brand : Xinhuadong
Model : HDSR-50
Material : Grey Cast Iron
Color : Red/blue Or Customized
Expiry/Validation Period : 1 Month
Physical Specification
Size or Volume : 730×390×790mm
Weight : 148-160kg
Other Specification : Model: HDSR-50
Capacity Scope: 0.67-2.27m3/min
Pressure Scope: 9.8-58.8kPa
Discharge Dia.: 50mm
Cooling Type: Air Current
Drive Type: Belt & Pulley
Matched Motor Power: 0.55-4kw
Usable Voltage: 380V, 400V, 415V
Frequency: 50HZ, 60HZ
Weight: 85-87kg
Dimension: 730×390×790mm
Package Dimension: 800×450×570mm
Detailed Features
Constant Volume Blower, No Compression, Air Conveying Is Smooth, So There Is Small Flow Rate Changes Along With The Pressure Changes.
The Use Of Tri-lobe Linear-shaped Impeller, Made Inlet And Outlet Pulsation Quiet Having Low Noise And Vibration.
Using Special Impeller Of Mesh Curve And Small Enclosure Make The Roots Blower High Efficiency, Low Energy Consumption, And It Is A New Energy-saving Products.
Using A Variety Of New Structural Design, Made The Blower With Compact Structure, Small Size, Light Weight, And Elegant Appearance.
Using High-precision Synchronous Hard-toothed Surface Gears Ensure Long Life Of The Roots Blower.
Cleaner And Contain Oily Free Air Delivery
Application: Widely Used In National Economic Areas: Sewage Treatment, Flour, Aquaculture, Pneumatic Conveying, Electric Power And Cement Industries.
Leading Features:
Our Company Took The Lead For The First Time The Piston Ring Applied In The Roots Blower, The Process Uses A New Era Of High Advanced Technology Innovation.
It Has Been Successfully Developed The Most Advanced Piston Ring Seal And The Way To Greatly Extend The Original Packing Seal Maintenance And Replacement Cycle Extended From 6 Months To 3 Years And Above.
Ensures No Leakage In A Variety Of Gas
