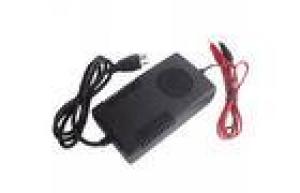

Intelligent NIMH NICD Battery Charger 24V , MCU And AC - Product
Place of Origin : Shenzhen,China
Delivery Time : 20 Days
Product Description
Pulse Auto NIMH NICD Battery Charger With 19.2-24V 1400mA
# # Name: Universal Smart battery charger, automatic intelligent battery charger, fast charger
# Input:100-240Vac 50-60Hz 1.0A
# Output:19.2-24Vdc Auto-detection
# charging current: 700mA and 1400mA
# Dimension: 120.0 x 60.0 x 38.0mm
# Plug: US/UK/EU AC input
# Feature: Short circuit protection, Over temperature protection, Pulse charging mode, CE approved
# Application: Medical care system, NIMH NICD battery pack
Physical Specification
Other Specification :
Pulse Auto NIMH NICD Battery Charger With 19.2-24V 1400mA
# # Name: Universal Smart Battery Charger, Automatic Intelligent Battery Charger, Fast Charger
# Input:100-240Vac 50-60Hz 1.0A
# Output:19.2-24Vdc Auto-detection
# Charging Current: 700mA And 1400mA
# Dimension: 120.0 X 60.0 X 38.0mm
# Plug: US/UK/EU AC Input
# Feature: Short Circuit Protection, Over Temperature Protection, Pulse Charging Mode, CE Approved
# Application: Medical Care System, NIMH NICD Battery Packs, Airsoft Gun, RC Car, RC Toy, RC Plane, E-bike, RC Air Plane, Diving Light, Bicycle, Power Tool, Halogen Bike Light Battery, LED Light
# Efficiency: 80%(min)
Quick Detail:
19.2V24V 0.7A And 1.4A NIMH NICD Battery Charger
Intelligent NIMH NICD Battery Charger 24V , MCU And AC
Description:
Universal Smart Charger For 19.2-24V NIMH NICD Battery Packs
End Charge By Detect Negative Delta V(10mV/cell),
Pulse Charging Mode,
Led Indicate Charging Status:
Red---in Charging; Green---fully Charged
Safety Protection
MCU Control Charging Process To Avoid Over Charge
Short Circuit Protection
Battery Reverse Connection Protection
Over Temperature Protection.
Input:100-240Vac 50-60Hz 1.0A
Output:19.2-24Vdc Auto-detection
Charging Current: 700mA And 1400mA
Dimension: 120.0 X 60.0 X 38.0mm
Applications:
Medical Care System, GEN CELL, SLA Battery, Lead Acid Battery, Airsoft Gun, RC Car, RC Toy, E-bike, RC Air Plane, Diving Light, Bicycle, Power Tool, Halogen Bike Light Battery, Bath Lift, Pillow Lift, Toilet Lift, LED Light
Specifications:
- - - -
| ITEM | UNIT | SPECIFICATION | REMARK |
INPUT |
01 | Rating Input Voltage | V Ac | 100~240Vac 50-60Hz | |
02 | Input Voltage Range | V Ac | 90~264Vac | |
OUTP
