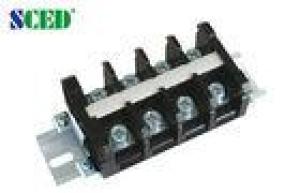

Double Levels Barrier Terminal Block Connector - Product

Other Specification : Double Levels 300V 15A Barrier Power Terminal Blocks Pitch 7.62mm Rightanglewireinlet;Verticalwireinlet;45degreewireinlet SingleLevel;Doublelevels;Triplelevels Standardcolor:Black.Othercolorsalsoavailable,pleaserefertobelowHowtoOrderand Selectthecolor Youwant. Howtoorder: Applications: PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation,Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, Etc.. ParameterandDrawingSpecifications: - - - - UL Technical Data | B | C | D | Rated Voltage / Current V/A | 300/15 | | 300/10 | Wire Range AWG | 14-22 | | 14-22 | IEC Technical Data | | Overvoltage Category | | | | Contamination Class | 3 | 2 | 2 | Rated Voltage / Current V/A | 250 / 24 | 320 / 24 | 400 / 24 | Rated Surge Voltage KV | 4 | 4 | 4 | Rated Connecting Capacity Mm2 | 2.5 | Material | | Insulation Material / Inflammability Class | PBT / UL94, V-0 | Terminal / Plating | Brass /Tin Plated | Screw / Plating | Steel / Nickel Plated | Other Data | | PCB Hole Diameter Mm | 1.5 | Stripping Length Mm | 7-8 | Screw / Torque / Lbf.in | M 3 / 5-7 | - - - - CompetitiveAdvantage: 1.Stablegoodquality 2.Competitiveprice 3.Quicklyresponse 4.Fullrangeproductsforselection 5.Flexibletodesigntheexactpartpercustomersdemand Tag: Barrierterminalblocks,Powerterminalblocks,ElectricalterminalBlocks,Terminalblockssuppliers.
