Product Description

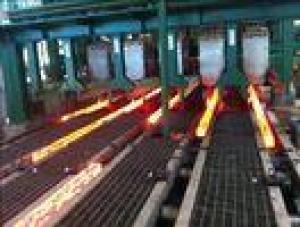

Continuous Casting Plant , R8M 2S , Simple Cooling Bank
1.Continuous Casting Plant
2,kinds of arc radius
3,kinds of billet type
4,kinds of strand
5,More options
We can produce high quality continuous casting machines from 1 to 8 strands with the lowest equipment manufacturing cost.We can design, manufacture the up-to-date billet continuous casting machine in accordance with the user's steelmaking capacity, billet size, steel grades and the user's field conditions.
Physical Specification
Other Specification :
Continuous Casting Plant , R8M 2S , Simple Cooling Bank
1.Continuous Casting Plant
2,kinds Of Arc Radius
3,kinds Of Billet Type
4,kinds Of Strand
5,More Options
We Can Produce High Quality Continuous Casting Machines From 1 To 8 Strands With The Lowest Equipment Manufacturing Cost.We Can Design, Manufacture The Up-to-date Billet Continuous Casting Machine In Accordance With The User's Steelmaking Capacity, Billet Size, Steel Grades And The User's Field Conditions.
Description:
1. Basic Standby Technical Parameters:
- - - -
Steel Billet Casting Machine Radius | 8m |
Strand Quantity | 2 Strands |
Ladle Support Type | Ladle Turret Or Ladle Car |
Tundish Carriage | Semi-portal, Cross Sliding Function |
Casting Method | Metering Nozzle, Open Casting |
Secondary Cooling | Gas And Water Cooling , 2 Adjusting Circuit |
Withdrawal Straightening Machine | Totally 5 Roller, Progressive Straightening |
Roll Table | Chain Group Centralized Drive |
Dummy Bar | Rigid, With Self-adapting Dummy Bar Head |
Billet Cutting | Hydraulic Or Flame Cutting Machine |
Billet Conveying | Group Centralized Live Roller Table |
Cooling Bank Type | Simple Cooling Bed |
- - - -
2. Technical Process Description And Capacity Of Steel Billet CCM
Induction Furnace:
- - - -
Nominal Capacity | 30T |
Tap-to-tap Cycle | 60min |
Furnace Quantity | 3sets |
- - - -
Production Capacity
- - - -
Working Days | 330 Days/year |
Average Number Of Daily Furnace | 24/day |
Production Capacity | 300,000t/year |
- - - -
3. Casting Speed, Productivity And Strand Quantity
R8m Radius Casting Machine Can Cast Steel Groups Of Different Specifications, The Maximum Casting Speed Is As
