Single Output CCTV Power Supplies , Battery Back up Power Supply - Product

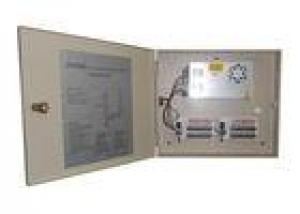

Other Specification :  1.Output Voltage:12V 2.Output Current:10A 3.Power:120W 4.Output Type:1 Channels For 1 Sets Load 5.Certification:CE Certified , IEC Certified 6.Supply Type:ODM Descrition: Single Output CCTV Power Supplies , Battery Back Up Power Supply The CCTV Power Supply Is Primarily Designed For WUF-GV, PTZ And Camera Of CCTV System. Its Also Used For Access, Building/house Control, Intrude Alarm And Other Light-current. It Is For Desktop Or Wall-mounted Installation. Features: # 12 Volt DC 10Amp Switch Mode Power Supply # One Output # Backup Battery: 12V 7AH # Charging Current: 350mA # Soft Starting Current, Effectively Reduce The Impact Of AC Input, Independent Short-circuit Protection And Surge Protection, Resume Automatically After Clearing Of Fault, EMI Filter, Minimum Ripple, 100% Load Test, Quality Guarantee, High Efficiency, Low T-rise, Continuous Duty Technical Specifications: - - - - Model | 12VDC10A1P/B | Power | 120W | Metal Case Dimension | 37.733.28.2cm | Net Weight | 3.45kgs | Input | Input Voltage | 110/220VVAC | Input Voltage Frequency | 50Hz-60Hz | Output | Output Voltage | 12VDC5% | Output Current | 10A | Output Ripple Noise(Vp-p) | 110mVp-p@25/ Rated Input Voltage & Rated Output Load | Reply Time Of Starting Up | 3S Input 100Vac, Rated Output Load | Fuse | Type /Rating | PTC 1.6A/60V | Protection | Over Current Protection | Over Current Point 1011A | Short-circuit Protection | When Short-circuit Occurs, The Individual PTC Fuse Will Break The Circuit. When The Fault Is Cleared, It Will Switch Back To Normal Automatically. | Charge | The Power Supply Will Automatically Switch To Storage Battery If There Is Outage. | Circumstance
