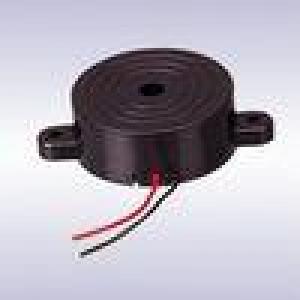

12V Active Piezo Electronic Buzzer 23MMx10MM 3500500 Hz - Product

Other Specification : 12V Active Piezo Electronic Buzzer 23MMx10MM Quick Detail: # # Size: D23mm*H10mm # SPL: Min.95dB At 3.5KHz/12VDC 1/2 Duty Square Wave/10cm # Operating Voltage: 6-15VDC Description: # # Buzzer # Piezo Buzzer With Build-in Oscillating # Piezo Buzzer # 12V Buzzer # 23mm Piezo Buzzer Specification: 1.Technical Parameter Measuring Condition Measuring Condition Part Shall Be Measured Under A Condition (Temperature: 535, Humidity: 45%85%R.H., Atmospheric Pressure: 860 1060hPa) Unless The Standard Condition (Temperature: 253, Humidity: 6010%R.H. Atmospheric Pressure: 860 1060hPa) Is Regulated To Measure. - - - - 1 | Rated Voltage | 12 VDC | 2 | Operating Voltage | 6 15VDC | 3 | Rated Current | Max.15mA, At 12VDC | 4 | Sound Output At 10cm | Min.95dB, At 12VDC | 5 | Resonant Frequency | 3500500 Hz | 6 | Tone | Continuous | 7 | Operating Temperature | -20 - +70 | 8 | Storage Temperature | -30 - +80 | 9 | RoHS | Yes | 10 | Weight | Approx 3g | - - - - - - - - - - - - - - - - - - - - 2. Dimensions Unit: Mm Tolerance: 0.5mm Except Specified *Housing Material: Black ABS 3. Reliability Test After Any Following Tests The Part Shall Meet Specifications Without Any Degradation In Appearance And Performance Except SPL. SPL Shall Not Deviate More Than -10 DB From The Initial Value (1)Ordinary Temperature Life Test The Part Shall Be Subjected To 96 Hours At 2510. Input Rated Voltage Resonant Frequency, 1/2 Duty Square Wave. (2)High Temperature Test The Part Shall Be Capable Of With Standing A Storage Temperature Of +80 For 96 Hours. (3)Low Temperature Test The Part Shall Be Capable Of With Standing A Storage Temperature Of -30 For 96 Hours. (4)Humidity Test Temperature:+403 Relative Humidity:90%95% Duration: 48 Hours And Expose To Room Temperature For
