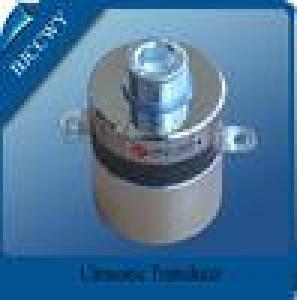

Piezo Ultrasonic Cleaning Transducer , Waterproof Ultrasonic Transducer - Product

Other Specification :  Piezo Ultrasonic Cleaning Transducer , Waterproof Ultrasonic Transducer Quick Detail: High-power Ultrasonic Drilling Machine, Welding Machine, Polishing Machine Vibrator Have Small Machinery Loss, High Efficiency Electricity And Sound Transfer, Big Swing And Less Heat. Description: Features High Efficiency: High Mechanical Parameter Q, The Transduction Efficient Between Electricity And Sound Above 95%. High Amplitude: The Transducer Strength Is Improved By Fixing The High Speed Vibrator Directly On The Base Of Washing Groove With Bolt. Compare With A Magnetic Expansion Vibrator, Its Amplitude Can Be Improved Above 50%. Good Heat Resistance: A Large Range Of Working Temperature, Low Resonance Impedance And Heat Productivity. Good Construction: Fastened By Bolt, Easy For Assembling, High Reliability. Applications: Widely Used In Ultrasonic Welding Machine Specifications: - - - - Type | Full-length(mm) | Joint Bolt(mm) | Frequency(KHz) | Resonance Impedance() | Capacity(pF) | Input Power (W) | CCH-7070F-15Z P8 | 153 | M201.5 | 15 | 15 | 13000 | 2500 | CCH-6060F-15Z P8 | 167 | M201.5 | 15 | 10 | 9500 | 2000 | CCH-5050F-15Z P4 | 171 | M181.5 | 15 | 12 | 12500 | 1500 | CCH-6060F-20Z P4 | 118 | M201.5 | 20 | 15 | 15000 | 1800 | CCH-5555F-20Z P8 | 128 | M181 | 20 | 10 | 11000 | 2000 | CCH-5050F-20Z P8 | 124 | M181.5 | 20 | 12 | 10000 | 1500 | CCH-4040F-20ZL P8 | 112 | 1/2-20 UNF | 20 | 15 | 9000 | 700 | CCH-4040F-20ZL-P P8 | 133 | 1
