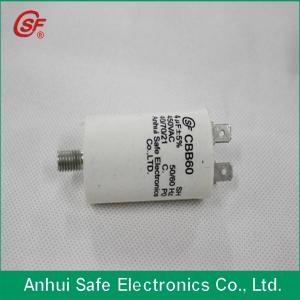

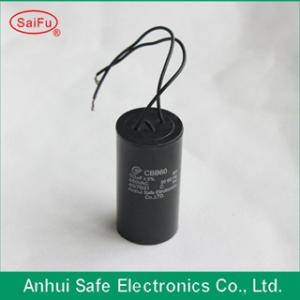

CBB65 film capacitor - Product

Place of Origin : Tongling,China

Product Description

AC motor capacitor
1.The capacitor is safe with Anti-explosion design
2.Capacitor start and runs of AC single motor at 50/60Hz

Basic Information

Brand : CSF/SAIFU
Model : CBB65

Physical Specification

Other Specification : CBB65 Anti-explosion Capacitor 1.Widely Applied To Starting And Running Of AC Single-phase Motors At 50Hz/60Hz Frequency Power 2.Column,aluminum Case,anti-explosion 3.Safer With Anti-explosion Design 4.High Stability And Reliability 5.Self-healing Property CBB65 AC Motor Capacitor Specifications Reference Standards: GB/T 3667.1( IEC60252-1) Climatic Category: 40 / 70 / 21,40 / 85 / 21 Class Of Operation: Class B (10000h) Class C (3000h) Class Of Safety Protection: P2/P1 Voltage Range: 200~630VAC Capacitance Range: 2~120uF Capacitance Tolerance : +/-5% Dissipation Factor: 20x10-4 (100Hz,20C) Test Voltage Terminal To Terminal UTT: 2 Un For 2 Seconds Test Voltage Terminal To Case UTC: (2Un+1000)VAC Or 2000VAC- 50Hz For 60 Seconds Insulation Resistance : >=3000 .uF (100Hz,20C,1min) Why Choose Us ? 1.As A National High-tech Enterprise,we Have 23years Exprience In Capacitor Industry,25 Industry Patents And A Number Of Invention Patents. 2.To Ensure The Capacitor Quality And Consistency,we Have Obtained The ISO 9001 Quality System Certificate And CQC Product Certificate. 3.We Have Modern Capacitor Factories And Purification Plant,the World First-class Production Equipment And The Technical Team Consisted Of A Number Of Experts. More Products Details : Www.capacitorfilm.com
