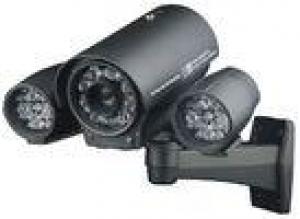

High Definition Color CCD Camera - Product

Other Specification :  High Definition CCD Camera Main Features: # # 1/3" Sony Color Super HADII CCD # High Resolution : 600 TV Lines # Lens Shading # Anti-Ghost 2DNR # D-WDR # Controlled By OSD Menu # DC12V / AC230V (Option) Technical Parameters: - - - - Model Number | HKS-206HVF | Image Sensor | 1/3" Sony Color Super HAD CCD, 410K Pixels | Total Pixels | N: 811(H) X 508 (V) / P: 795 (H) X 596 (V) | Effective Pixels | N; 768(H) X 494 (V) / P: 752 (H) X 582 (V) | Scanning System | N: 525 (H) Lines, 2:1 Interlaced / P :625 (H) Lines, 2:1 Interlaced | Synchronization | Internal | Resolution | COLOR : 600 TV Lines (Typ.) | Video Output | VBS : 1.0Vp-p, 75 Composite | S/N Ratio (Y Signal) | 52dB (AGC Off, Weight On) | Minimum Illumination | 0.15 Lux / F1.2 (Color) | Backlight Compensation | BLC / D-WDR/ HLM / OFF Selectable | Day & Night Selection | COLOR / B/W / AUTO/ EXT/ IR SMART | Gain Control | LOW / MIDDLE / HIGH / OFF Selectable | White Balance | ATW1/ATW2/MANUA | Electronic Shutter Speed | N : 1/60 Sec ~ 1/120, 000 Sec / P :1/50 Sec ~ 1/120, 000 Sec | Sense-Up | / | OSD | Built-in | Motion Detection | ON(4AREA) / OFF | IRIS Control | DC | Lens Shading | ON / OFF | DNR | ON / OFF | Privacy | ON / OFF (8 Zone) | Mirror (H-REV) | ON / OFF | Flip (V-REV) | / | STILL | / | Sharpness | ON / OFF (Level Adjustable) | Saturation | ON / OFF (Level Adjustable) | Digital Zoom | / | Parking Line | ON / OFF | Communication | / | Blemish Compensation | 64 Points | Lens | C / CS Amount | IR LED | / | Operating Temp. | -10~ +50[14F ~ 122F] | Operating Humidity | 30 ~ 80% RH | Power Source | DC 12V 10%, Max. 2.0W | Dimensions | 117mmX66mmX71mm | Weight | 460g | - - - -
