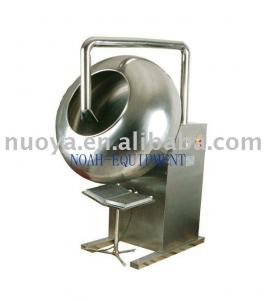

400E BG High Efficiency Film Coating Machine - Product
Place of Origin : Yangzhou,China
Product Description
Products introduction :
It is kind of equipment integrating elegance, high efficiency, energy-saving, safety, easy to clean, which is applied for coating traditional Chinese and Western tablets and pills (including micro-pills, small pills, water-bindered pills, drip pills and granulated pills)with sugar, organic film, water soluble film, slow and controlled release film in the fields of pharmacy, food and biology etc. The machine is equipped with the programmable PLC (machine and person inte
Basic Information
Brand : Noah
Material : Stainless Steel
Physical Specification
Size or Volume : 2050*1670*2360mm
Weight : 1200kg
Other Specification :
Main Technical Parameters:
Technical\ Type 400E 150(D)E 80(D)E 40(D)E 10D
Load Capacity (kg) 400 150 80 40 10
Revolutions(R/Min) 2.0-12 2.0-14 2.0-16 2.0-18 3.0-19
Machine Dimensions Kw 3 2.2 1.5 1.1 0.55
Machine Dimensions
(L*W*H) Mm 2050*1670 *2360 1730*1320 *2030 1370*1050 *1700 1100*850 *1470 900*700 *1400
Diameter Of Coating Drum Mm 1500 1200 930 780 500
Power Of Air Exhaust Cabinet Motor Kw 7.5 5.5 3 2.2 0.75
Air Exhaust Flow M3/h 10000 7419 5268 3517 1285
Power Of Hot Air Cabinet Motor Kw 2.2 1.5 1.1 0.75 0.37
Hot Air Flow M3/h 3600 2356 1685 1285 816
Weight Of Main Machine Kg 1200 850 600 500 200
Overall Dimensions Of Air Exhaust Cabinet Mm 1000*900
*1650 1000*900
*1650 1000*900
*1650 900*800
*1500 750*600
*1130
Overall Dimensions Of Air Exhaust Cabinet Mm 1050*1050
*2000 950*950
*1950 900*820
*1850 820*720
*1750 750*600
*1130
Air
Consumptio Pressure MPa >0.39 >0.39 >0.39 >0.39 >0.39
Air Consumption M3/min 1.5 0.5 0.35 0.2 0.2
